 InSinkErator Evolution Compact: Up to 50% offPerfect for small households or restricted cabinet space. The space-saving InSinkErator Evolution Compact� includes two grind stages and is 30% quieter than a standard disposer. See all Product Description. |

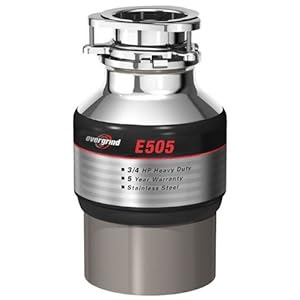

Insinkerator Evergrind E505 3/4 HP Heavy-Duty Garbage Disposer Product Detail
Includes sound absorbing upper shell for quiet operation, massive nickel chrome shredder ring and stainless steel grinding elements with 360 stainless steel swivel impellers and grind chamber, permanently lubricated bearings, and Quick lock mounting assembly for faster, easier installation. Also includes overload protection switch with manual reset, self service wrench to free simple jams, corrosion resistant sink flange, corrosion protection shield, dishwasher drain connection, and 2 piece deluxe stainless steel stopper. 5 year warranty.
As with composting, a food disposer keeps food waste out of landfills, which are a significant source of greenhouse gas emissions. A garbage disposer can provide an environmentally responsible alternative to transporting food waste to landfills by sending food waste to a wastewater treatment plant. At capable plants, food waste is recycled into renewable energy, while biosolids (a byproduct of the treatment process) can be converted into fertilizer.
How to Install a InSinkErator Disposer
Step 1: Install sink-mount assembly (new installation or different sink mounting)
Turn off the electrical supply at the circuit breaker or fuse box. Disconnect the sink drain and plumbing connections. Clean off the sink opening. Using plumber's putty, install the new disposer sink flange into the sink drain and connect the sink-mounting assembly. (Skip step two and move to step three.)
Step 2: Remove old disposer (replacements with similar sink mounting)
Turn off the electrical supply at the circuit breaker or fuse box. Disconnect the old disposer's plumbing connections and remove the disposer from its mounting. Disconnect the old disposer�s electrical connections.
Step 3: Make electrical connections
Connect the wiring to the new disposer following the code in your area.
Step 4: Dishwasher connections
If you are connecting the disposer to a dishwasher, be sure to knock out the dishwasher plug and remove the loose plug from the disposer. If you are not connecting the disposer to a dishwasher, then leave the plug intact.
Step 5: Connect new disposer
Mount the new disposer onto the sink-mount assembly and reconnect the plumbing--including the dishwasher hose if applicable. Turn on the electrical power to the disposer at the circuit breaker.
Step 6: Make plumbing adjustments
Lock the disposer in place, make final plumbing adjustments, and check for any leaks.
Recommended tools for installation: Slotted screwdriver, Adjustable pliers, Plumber's putty (if replacing sink flange), Electric hard-wire connector, 3/4-inch conduit connector, Power-cord kit (if needed).
Step 1: Install sink-mount assembly (new installation or different sink mounting)Turn off the electrical supply at the circuit breaker or fuse box. Disconnect the sink drain and plumbing connections. Clean off the sink opening. Using plumber's putty, install the new disposer sink flange into the sink drain and connect the sink-mounting assembly. (Skip step two and move to step three.)
Step 2: Remove old disposer (replacements with similar sink mounting)
Turn off the electrical supply at the circuit breaker or fuse box. Disconnect the old disposer's plumbing connections and remove the disposer from its mounting. Disconnect the old disposer�s electrical connections.
Step 3: Make electrical connections
Connect the wiring to the new disposer following the code in your area.
Step 4: Dishwasher connections
If you are connecting the disposer to a dishwasher, be sure to knock out the dishwasher plug and remove the loose plug from the disposer. If you are not connecting the disposer to a dishwasher, then leave the plug intact.
Step 5: Connect new disposer
Mount the new disposer onto the sink-mount assembly and reconnect the plumbing--including the dishwasher hose if applicable. Turn on the electrical power to the disposer at the circuit breaker.
Step 6: Make plumbing adjustments
Lock the disposer in place, make final plumbing adjustments, and check for any leaks.
Recommended tools for installation: Slotted screwdriver, Adjustable pliers, Plumber's putty (if replacing sink flange), Electric hard-wire connector, 3/4-inch conduit connector, Power-cord kit (if needed).
Insinkerator Evergrind E505 3/4 HP Heavy-Duty Garbage Disposer Product Features
| |
|
Grind Capacity
The grind capacity of a disposer refers to the interior size of the grind chamber, which ranges from small to large. Larger-capacity models have the ability to process larger amounts of food waste in a single batch and are a better fit for larger families or frequent cooking.
The grind capacity of a disposer refers to the interior size of the grind chamber, which ranges from small to large. Larger-capacity models have the ability to process larger amounts of food waste in a single batch and are a better fit for larger families or frequent cooking.
